CT-SEN-101

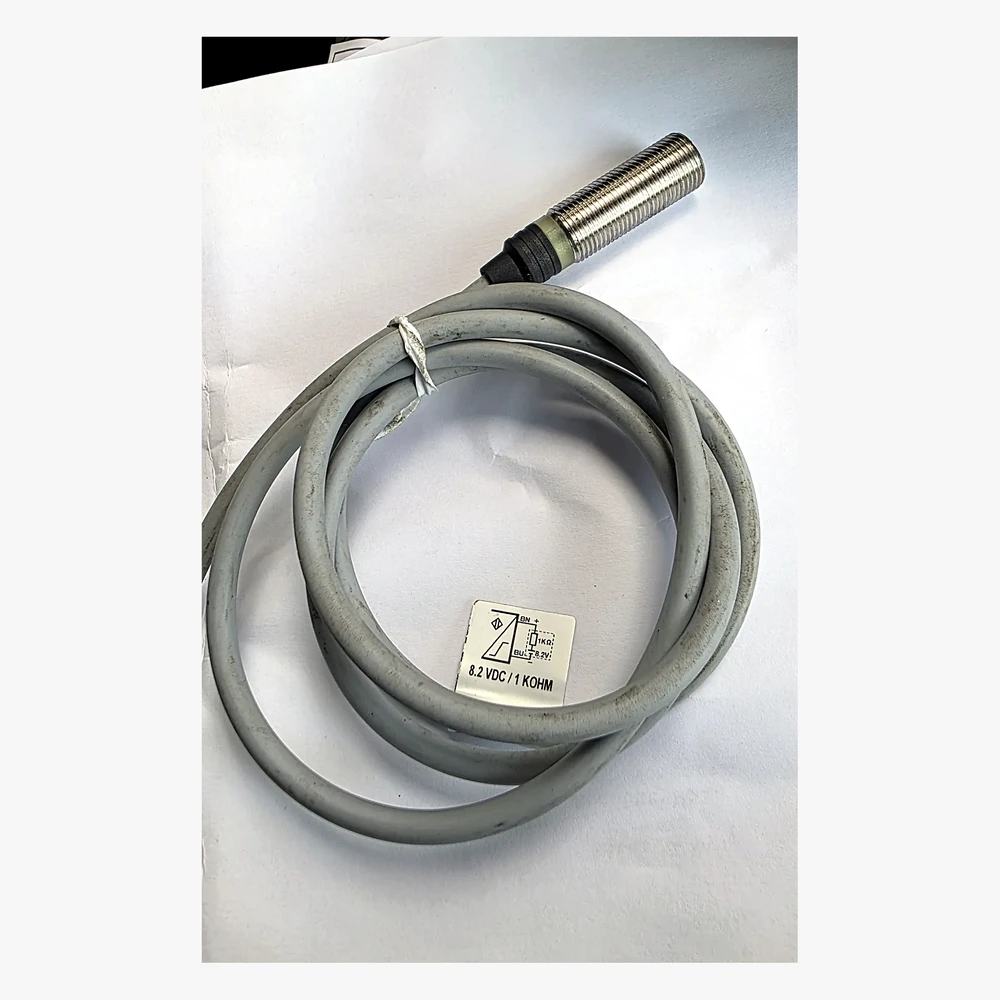

Carlo Gavazzi IA12ESF02UC M12 NAMUR Inductive Proximity Sensor
In stock · 2 available
£38.50
Genuine Carlo Gavazzi M12 NAMUR NC inductive proximity sensor with 2 mm flush sensing, 7–9 VDC supply, 2 m cable and IP67 protection.
Genuine Carlo Gavazzi IA12ESF02UC inductive proximity sensor in a short M12 stainless-steel threaded body. The manufacturer specifies 2 mm rated operating distance, flush mounting, NAMUR normally-closed output, 7–9 VDC supply, 2 m integral cable, maximum switching frequency of 1400 Hz, operating temperature from -25 °C to +70 °C and IP67 protection.
Technical & installation notes
- This is a NAMUR normally-closed sensor, not a conventional 3-wire 24 V PNP/NPN proximity switch.
- Confirm the receiving circuit or NAMUR interface and wiring before fitting.
- Match the full IA12ESF02UC reference where the application requires the specified M12, flush, 2 mm NAMUR configuration.
| CtrlOn ID | CT-SEN-101 |
|---|---|
| Manufacturer / brand | Carlo Gavazzi |
| Part / reference | IA12ESF02UC |
| Sensor type | Inductive proximity sensor |
| Housing | M12 stainless steel, short body |
| Rated sensing distance | 2 mm |
| Mounting | Flush |
| Output | NAMUR, normally closed (NC) |
| Supply voltage | 7–9 VDC |
| Maximum output current | 9.35 mA |
| Maximum switching frequency | 1400 Hz |
| Cable | 2 m integral cable |
| Operating temperature | -25 °C to +70 °C |
| Protection | IP67 |
Delivery: £12 tracked UK delivery · Free on parts orders £180+.
Compatibility: This is a NAMUR NC sensor, not a conventional 3-wire 24 V PNP/NPN proximity switch. Confirm the receiving circuit or NAMUR interface before fitting.
