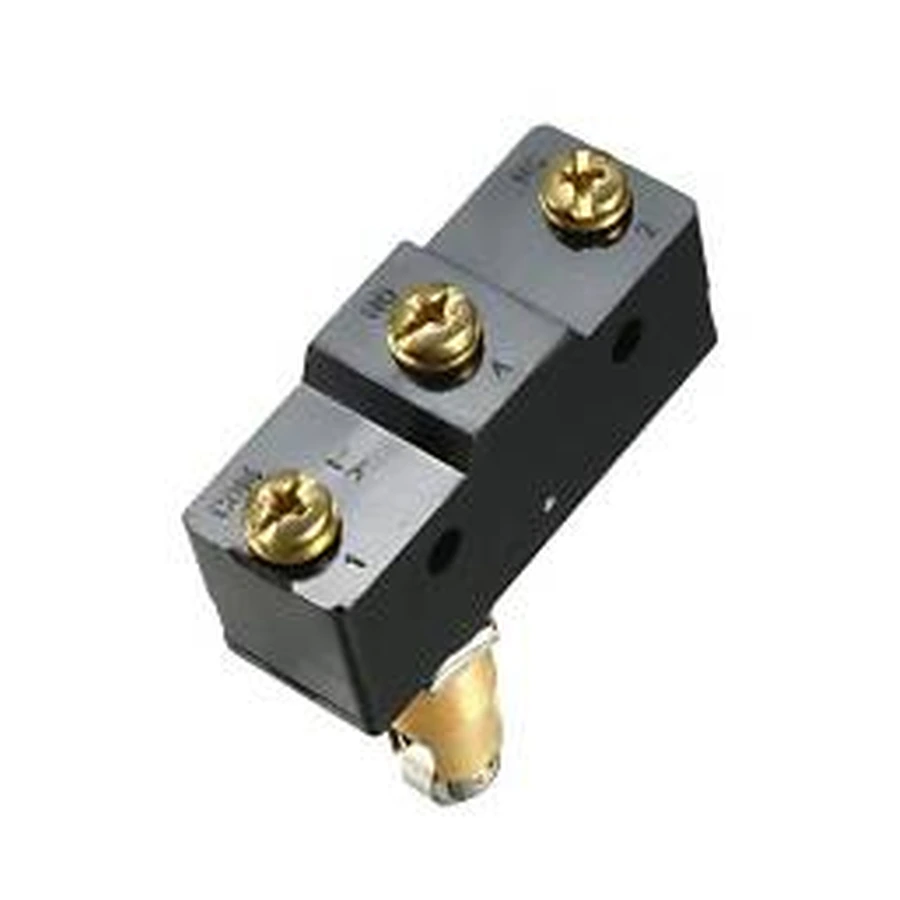

DELIXI LXW5-11Q1 Roller Plunger Micro Limit Switch
Compact panel-mount roller plunger microswitch with 1NO + 1NC contacts for machine interlock, travel and position-sensing duties.
DELIXI LXW5-11Q1 panel-mount roller plunger microswitch for mechanical stroke control, protection and interlocking. Typical equipment applications include wheel-balancer hood or bonnet interlocks, including Draper-type machines where the mounting and contact requirements match, 2-post vehicle-lift rope-slack or safety limit circuits, guards, end stops and other industrial machinery. It is not a universal replacement: confirm the actuator orientation, mounting dimensions, contact logic and electrical rating against the original switch before fitting.
Technical & installation notes
- The LXW5-11Q1 uses a panel-mount roller plunger actuator. The supplied LXW5 datasheet identifies Q1 as the panel-mount roller plunger form.
- The LXW5-11 contact code provides one normally open and one normally closed contact.
- For wheel balancers, vehicle lifts and other safety/interlock applications, confirm mounting dimensions, actuator travel and the required contact state before replacing the original switch.
- Equipment examples are typical applications only and do not establish compatibility with every Draper, wheel-balancer or vehicle-lift model.
| CtrlOn ID | CT-LS-007 |
|---|---|
| Manufacturer / brand | DELIXI Electric |
| Part / reference | LXW5-11Q1 |
| Actuator | Panel-mount roller plunger (Q1) |
| Contact arrangement | 1 normally open + 1 normally closed |
| Rated insulation voltage (Ui) | 380 V |
| Rated working voltage (Ue) | 380 V AC / 220 V DC |
| Rated working current (Ie) | 2.5 A AC / 0.3 A DC |
| Conventional heating current (Ith) | 3 A |
| Protection | IP62 |
| Action force | 2–3.8 N |
| Reset force | 1 N minimum |
| Repeatability | ±0.05 mm |
| Action stroke | ≤1 mm |
| Typical use | Wheel-balancer hood/bonnet interlocks, vehicle-lift rope-slack/safety limits, machinery interlocks and position sensing |
Delivery: £12 tracked UK delivery · Free on parts orders £180+.
Compatibility: Wheel-balancer, Draper-type and vehicle-lift examples describe typical applications only and do not prove model fitment. Match the original reference, mounting dimensions, actuator orientation and travel, 1NO + 1NC contact logic and electrical rating before fitting.
